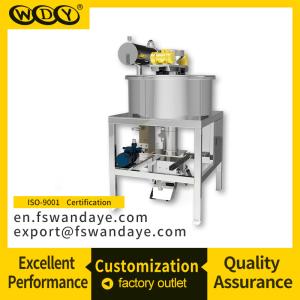

Feldspar Lithium Battery Quartz Sand Magnetic Drum Separator

Brand Name : WDY

Model Number : WG220-B-V-11

Certification : ISO9001：2008

Place of Origin : FOSHAN.CHINA

MOQ : 1set

Price : Negotiable

Supply Ability : 50 SETS PER MONTH

Delivery Time : Within 25 days after the advance payment is made

Packaging Details : Film And Wooden Case

Model : WG220-B-V-11

Magnetic field strength（T） : 3

Inputvoltage（ACV） : 380

Maximum output current（DCA） : 15

Maximum coil power（KW） : 11

Insulation method : E

Cooling method : water and oil double cooling

Magnetic lumen diameter（mm） : 220

yield（T） : 0.5-2

dimension（mm） : 1300*1100*1850

Main machine weight （KG） : 1130

Usage : Applicable for 60-300 mesh feedstock of iron elimination

Contact Now

Scrap Magnetic Separator Machine Industrial Magnetic Drum Separator


Magnetic Separator Magnetic Drum Separator kaolin feldspar quartz sand foods medicine lithium battery plastic


Product characteristic

1. Large wrap angle and multi-magnetic-pole.

2. Can design different magnetic field intensity as the property of raw ores.

3. Doesn’t need to come over the gravity and resistance of the raw material.

4. With the mechanical vibrating equipment



Operation process

1. Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator.

2. After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.

3. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.

Industries catered:

  • Minerals
  • Chemicals
  • Food
  • Flour
  • Plastics
  • Grains
  • Sand
  • Cement
  • Fertilizers




Technical parameter

Model WG160B-V-3 WG220B-V-3 WG300-V-7 WG220B-V-11 WG430-V-11 WG220-V-15 WG600-V-20
Magnetic field strength(t) 2 2 3 3 3 5 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 7 20 20 20 30 40
Maximum coil power(KW) 3 3 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 220 600
Yield(m3/h) 0.5-1.5 43833 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm) 700*700 860*860 1320*1320 1300*110 1500*1500 1350*1100 1500*1500
*1450 *1540 *2500 *1800 *2500 *1850 *2000
Main machine weight(kg) 450 490 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination


Customer case photo

Feldspar Lithium Battery Quartz Sand Magnetic Drum SeparatorFeldspar Lithium Battery Quartz Sand Magnetic Drum Separator
